01
Basic beam
A main beam and two extension beams. Additional components can extend the beam.
- Length
- 2 546–7 306 mm
- Weight with accessories
- 198–325 kg
KULJETUS NPR / MODULAR LIFTING BEAMMODUBEAM.
MODUBEAM.
ADAPTS
TO THE LIFT.
A lifting beam manufactured by Kuljetus NPR Oy. The adjustable basic beam can be extended with additional components into an X or H beam.
BASIC BEAM · X BEAM · H BEAMFind out more · +358 50 594 2326
01 / CONFIGURATIONSONE SYSTEM.
ONE SYSTEM.
THREE CONFIGURATIONS.
The basic, X and H configurations can be used for centre lifting or as spreaders in accordance with the manual.
02
X beam

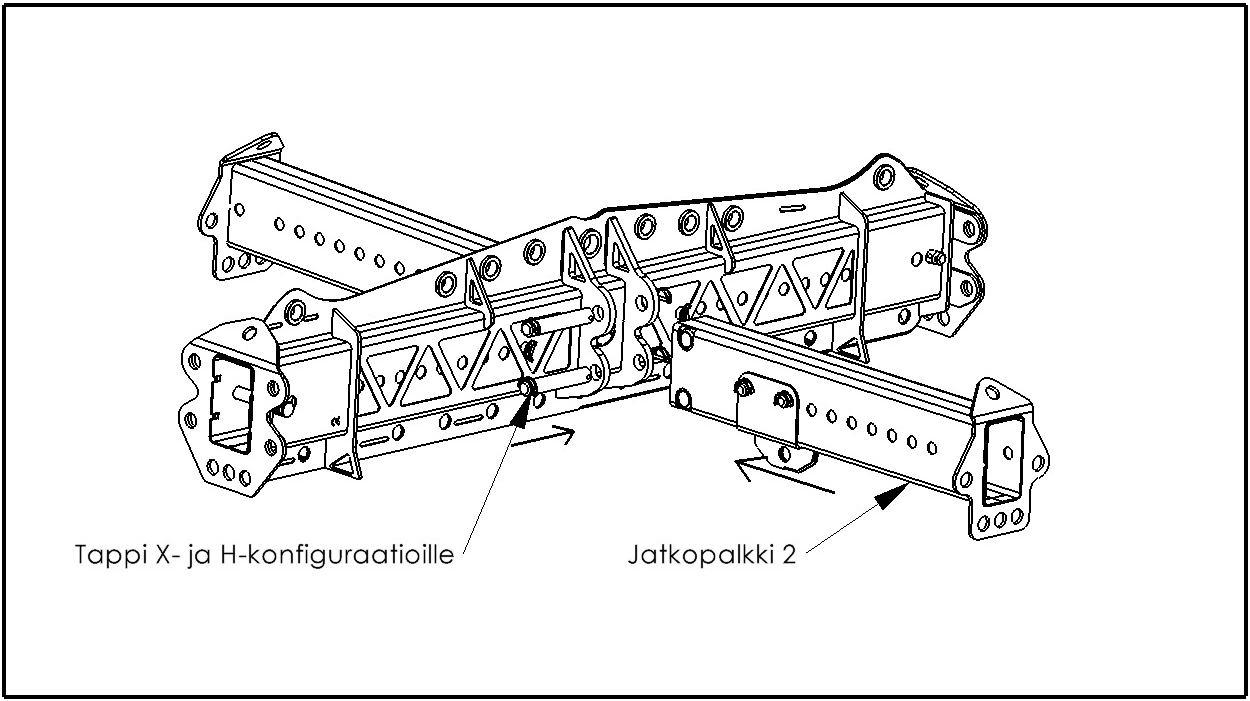

A transverse extension beam creates the X configuration. Additional components allow adjustment of the width and lifting point position.
- Length
- 2 546–4 346 mm
- Width
- 2 540–4 240 mm
03
H beam

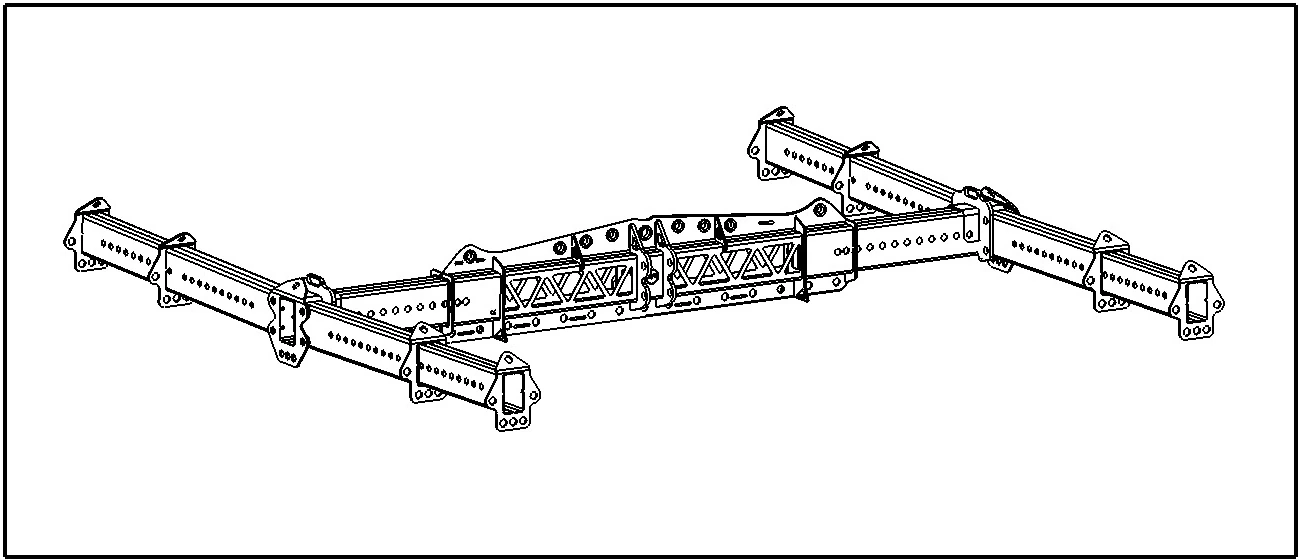

An H configuration assembled from additional components. The width can be increased with extension beams in accordance with the manual.
- Length
- 3 300–4 450 mm
- Width
- 2 550–4 250 mm
Product images and drawings: Kuljetus NPR Oy, ModuBeam manual v. 0.3.
02 / DIMENSIONS AND LOADS
TECHNICAL SPECIFICATIONS.
Dimensions and loads from the manufacturer's manual, version 0.3. WLL means working load limit.
Scroll the table sideways to see all configurations →
| Specification | Basic beam | X beam | H beam |
|---|---|---|---|
| Length | 2 546–7 306 mm | 2 546–4 346 mm | 3 300–4 450 mm |
| Width | 390 mm | 2 540–4 240 mm | 2 550–4 250 mm |
| Weight with accessories | 198–325 kg | 273–329 kg | 429–540 kg |
| WLL, centre lift · shortest setting | 13 t | 16 t | 10 t |
| WLL, centre lift · longest setting | 4 t | 10 t | 10 t |
| WLL, spreader lift at 45° · shortest setting | 15 t | 20 t | 12 t |
| WLL, spreader lift at 45° · longest setting | 10 t | 20 t | 12 t |
| Maximum inclination from horizontal | 10,6° | 6° | 6° |
The permitted load depends on the configuration, length and lifting method. Check the WLL for the selected setting in the load chart and follow the manual. The table's extreme values do not determine loads for intermediate settings.
03 / DOWNLOADSLOAD CHARTS
LOAD CHARTS
AND MANUALS.
Original PDF documents. Open the load charts or manuals in Finnish and English.
Load chartsPermitted loads for the basic, X and H beams.3 sideaENUser manualAssembly, operation, load attachment and inspections.20 sidea · v. 0.3FINNISHUser manualAssembly, operation, load attachment and inspections.19 pages · v. 0.3ENGLISH
PDF files open in a new tab. The manuals also include assembly drawings and inspection instructions.
